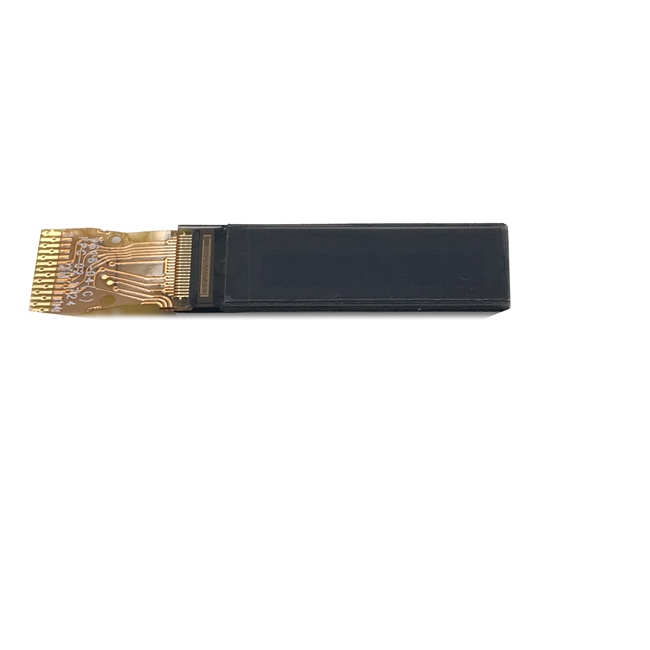

Graphic Mono VA Small Lcd Display Module With Backlight 9616

Name: Graphic Mono VA Small Lcd Display Module With Backlight 9616
Brand: OKSMART
Price: 2.10 USD

Graphic Mono VA Small Lcd Display Module With Backlight 9616 Manufactures

Brand Name : OKSMART

Model Number : OKM9616-04

Certification : SGS

Place of Origin : Shenzhen China

MOQ : 3000

Price : usd 2.10 - 2.90 piece

Payment Terms : T / T, trade assruance, Western Union, L/C, D/A, D/P, MoneyGram

Supply Ability : 10000 pieces per month

Delivery Time : 1- 30 working days

Packaging Details : Cartons, Capboard, EPE, Blister Tray. About how many products in one package, it is up to the size of products.

Item No : OKM9616-04

LCD mode : Transmissive

Driving scheme : 1/16 Duty cycle, 1/6 Bias 3-1. Module size

Module size : 0.175mm(L)*0.175mm(W) 3-4

Viewing direction : 6 o’clock

origin : Shenzhen China

Contact Now

Graphic mono display 9616 VA LCD display screen with backlight

Graphic mono display 9616 VA LCD display screen with backlight LCD/LCM is assembled and adjusted with a high degree of precision. Do not attempt to make
any alteration or modification

2-1. Format : 96*16 Dots
2-2. LCD mode : VA,NEGATIVE,Transmissive
2-3. Viewing direction : 6 o’clock

2-4. Driving scheme : 1/16 Duty cycle, 1/6 Bias

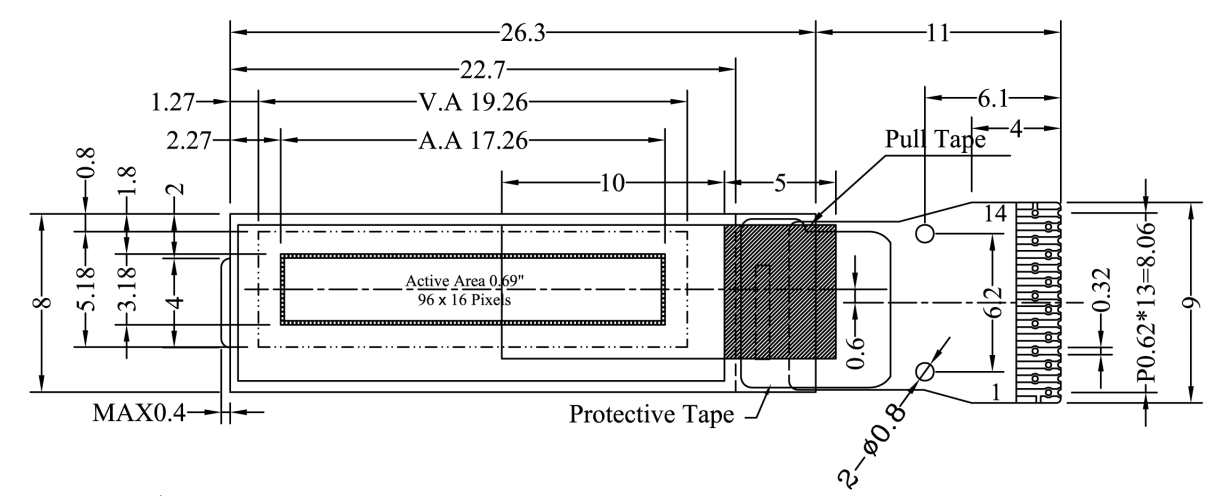

3-1. Module size : 26.3mm(L)*8.0mm(W)*2.0mm(H)
3-2. Viewing area : 19.26mm(L)*5.18mm(W)

3-3. Dot pitch : 0.18mm(L)*0.20mm(W)
3-4. Dot size : 0.16mm(L)*0.18mm(W)
2-5 . Low power operation : Power supply voltage range (VDD): 3.0V

2-6. Operating temperature : -20℃~70℃
2-7. Storage temperature : -30℃~80℃

Item name	OKM9616-04	Viewing area	19.26mm(L)*5.18mm(W)
Operating temp	-20℃~70℃	Storage temp	-30℃~80 ℃
Dot pitch	0.18mm(L)*0.20mm(W)	Dot size	0.16mm(L)*0.18mm(W))

Graphic Mono VA Small Lcd Display Module With Backlight 9616

Our factory

FAQ

1. How long can we expect the samples?

Answer: Immediately in most of the cases.

2. Will I get tracking details when my order ships?

Yes, After we shipped the goods, we offer the tracking number soon on line.

3.What should I do if a part I receive is damaged?

It is extremely rare to receive a damaged part because we quality test all of our parts before shipping them out.

However if you believe a part you ordered was damaged before you tried to install it,

keep it in its’ original box and wrapping and contact us so that we may assist you.
