1.12 Inch COG Full Color Oled Display Module 96*96 For Smart Watch

Product Categories

Shenzhen Ok Smart-Lcm Photoelectric Co., Ltd.

Contact Now

1.12 Inch COG Full Color Oled Display Module 96*96 For Smart Watch

Name: 112 Inch COG Full Color Oled Display Module 9696 For Smart Watch
Brand: OKSMART
Price: 4.2 USD

1.12 Inch COG Full Color Oled Display Module 96*96 For Smart Watch Manufactures

Brand Name : OKSMART

Model Number : OKP9696-01

Certification : SGS

Place of Origin : China

MOQ : 800pcs

Price : usd 4.2-5.9 / pcs

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 100000pcs

Delivery Time : 15-25days

Packaging Details : 40pcs in one tray, 15 trays in one inner box, 4 inner box in 1 outer box. Outer Box Dimensions: 49*48*31cm. Gross Weight is around 13KGs

Item No : OKP9696-01-C

Panel matrix : 96x96 color display

connection : FPC-Soldering

Application : smart watch

Drive IC : SSD1351Z

Wide viewing angle : 160 °

High contrast : 2000:1

Contact Now

1.12 COG Color OLED with 96x96 resolution for industrial device application

OK Smart oled is the graphic OLED display module made of 96*96 color OLED pixels,diagonal is only 1.21 inch.The controller ic SSD1351Z, Extremely thin thickness for best mechanism design : 1.227m . Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature 120 degree , 8/16-bit 8080-series Parallel Interface, Serial Peripheral Interface

item No.	OKP9696-01
size	1.12inch
VA	22.135*21.94mm
Driver IC	SSD1351Z
Wide angle	160 degree
operating tempeture	-20-70 degree

1.12 Inch COG Full Color Oled Display Module 96*96 For Smart Watch

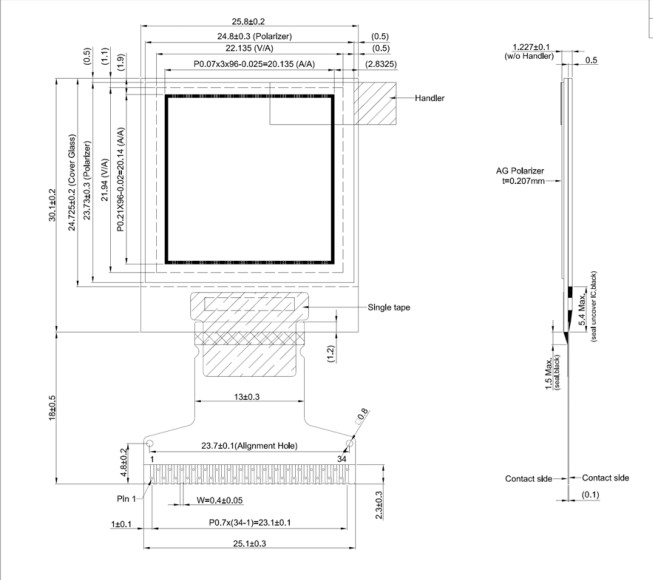

DATESHEET:

1.12 Inch COG Full Color Oled Display Module 96*96 For Smart Watch

Other hot selling OLED items from OKSMART

1.12 Inch COG Full Color Oled Display Module 96*96 For Smart Watch

Product Tags:

0.96 inch oled display

monochrome oled display

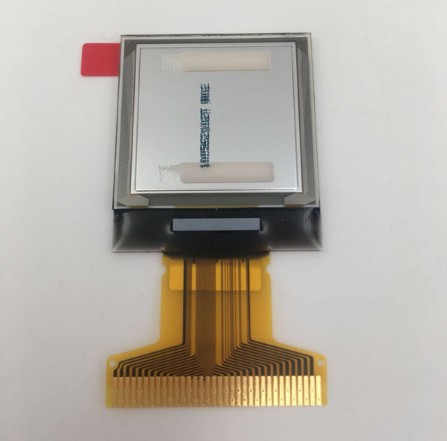

1.12 Inch COG Full Color Oled Display Module 96*96 For Smart Watch Images
