Positive type 128 * 64 FSTN Graphic Mono Lcd with White backlight

Product Categories
Shenzhen Ok Smart-Lcm Photoelectric Co., Ltd.
Contact Now

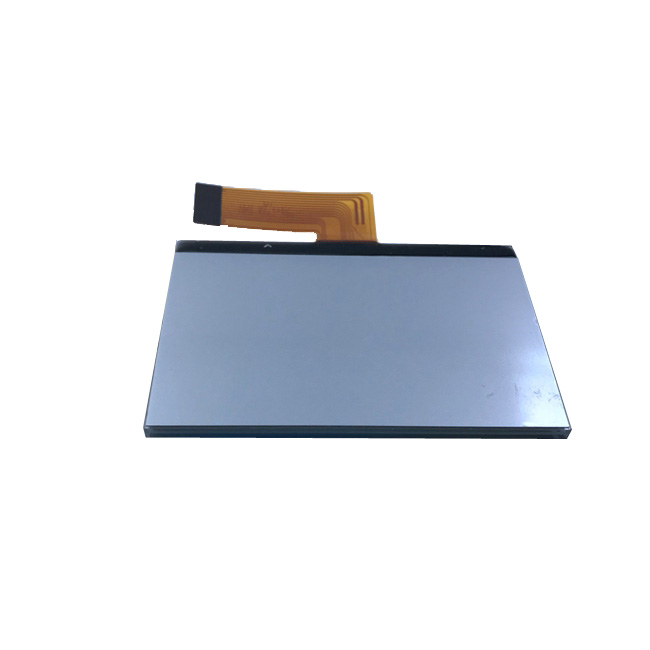

Positive type 128 * 64 FSTN Graphic Mono Lcd with White backlight

  • 1
  • 2

Brand Name : OKSMART

Model Number : OKM12864-285

Certification : SGS

Place of Origin : Shenzhen China

MOQ : 1000

Price : USD 1.27-2 per piece

Payment Terms : Trade Assurance, L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability : 90000 pieces per month

Delivery Time : 30-45 working days

Packaging Details : Kraft box / white box to a carton or customized packing

Other name : Graphic Mono Lcd with White backlight

Format : 128X64 Dots

LCD mode : FSTN,POSITIVE,Transflective

Viewing area : 50mm(L)*28.5mm(W)

Dot pitch : 0.365mm(L)*0.4mm(W)

Dot size : 0.35mm(L)*0.385mm(W)

Contact Now

Positive type 128 * 64 FSTN Graphic Mono Lcd with White backlight

Parameter details:

1 : Viewing direction :12 o’clock .
2 : Driving scheme :1/65 Duty cycle, 1/9Bias .
3 : Low power operation :Power supply voltage range(VDD):3.3V .
4 : VLCD adjustable for best contrast :LCD driving voltage(VOP):9.0V
5 : Operating temperature :-20℃~70℃ .
6 : Storage temperature :-30℃~80℃
7 : Module size :56.5mm(L)*39mm(W)*5.5mm(H)

PINDESCRIPTION :

1 / ESD_GND / Ground
2 / SEC_OUT / ConnecttoSEC_IN
3 / SEC_IN / ConnecttoSEC_OUT
4 / /CS / ChipSelect ,When/CS= “L”,chipisselected
5 / /RS T / When/RST=“L”,thesettingsareinitialized
6 / A0 / SelectregisterdatawhenA0=“H”,andinstructionwhenA0=“L”
7 / SCLK / Serialclockinputterminal
8 / SDA / Serialdatainput terminal
9 / VDD Supplyvoltage forlogiccircuit
10 / VSS / Ground
11 / V0 / LCDdrivingvoltageforcommoncircuits atnegativeframe.
12 / XV0 / LCDdrivingvoltageforcommoncircuits atpositive frame.
13 / VG / LCDdrivingvoltageforsegment circuits.
14 / A Backlight positivepowersupply
15 / K / Backlight negative powersupply
16 / ESD_GND / Ground
